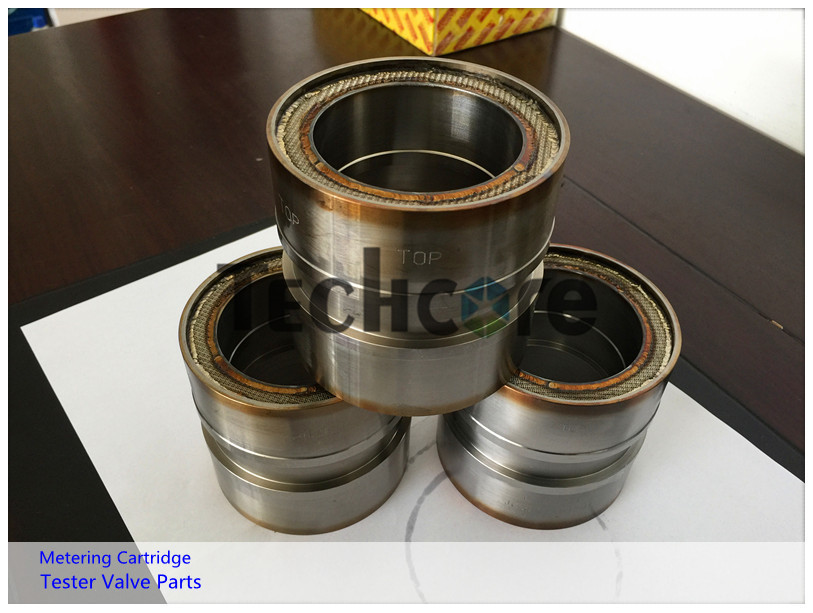

Introduction of Metering cartridge

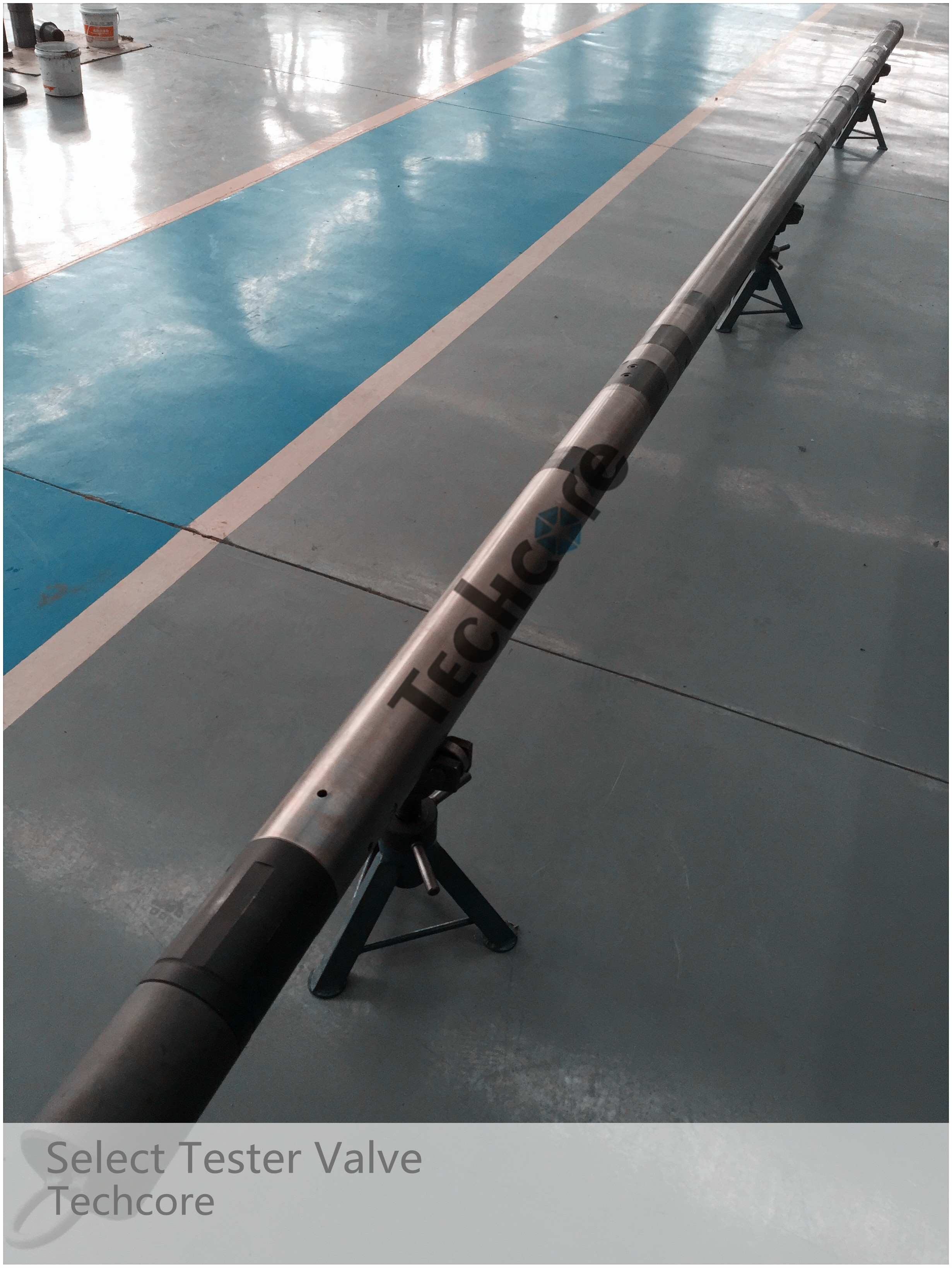

The metering cartridge is the main section of the select tester valve which is used for the drill stem testing operation in oil and gas well. The select tester valve is designed with the capabilities of taking multiple downhole closures where pipe manipulation is restricted and a full opening string is desired.

The metering cartridge used in the Select Tester Valve is different from the one used in the LPR-N tester valve.  The metering rate for this cartridge can be varied by changing the type of plugs installed in the OD of the metering cartridge housing. This feature will allow the tool to operate over a wider range of bottom hole conditions without disassembling the tool and changing the metering cartridge. The standard metering cartridge operating pressure range is 2 ksi to 14 ksi hydrostatic pressure.

Standard Metering Cartridge in select tester valve

Drill stem testing tools for cased hole, open hole and slim hole are available as below

RTTS Serires: Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint,

Tester Valve: downhole tester valve, select tester valve, LPR- N Valve, Tubing String Tester Valve

Circulating valve: omni valve, multi-cycle circulating valve, RD Circulating valve, RD safety Circulating Valve, Hydraulic Circulating Valve

Other DST string tools: hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve,  sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.

Techcore Service

Strict quality control system

Techcore oil tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..

Continuous after sales service

Techcore provides the prompt after-sales service to our customers to guarantee your benefits. For the complete downhole tools, we provide the free training in our factory, and if you need the site instruction, we can appoint our technical engineer to your site for the training.

Welcome to contact us for more information of the downhole tools!
