7" x 10000psi 23-29# Mechanical Retrievable Packer Redress Kit / RTTS Packer Part List

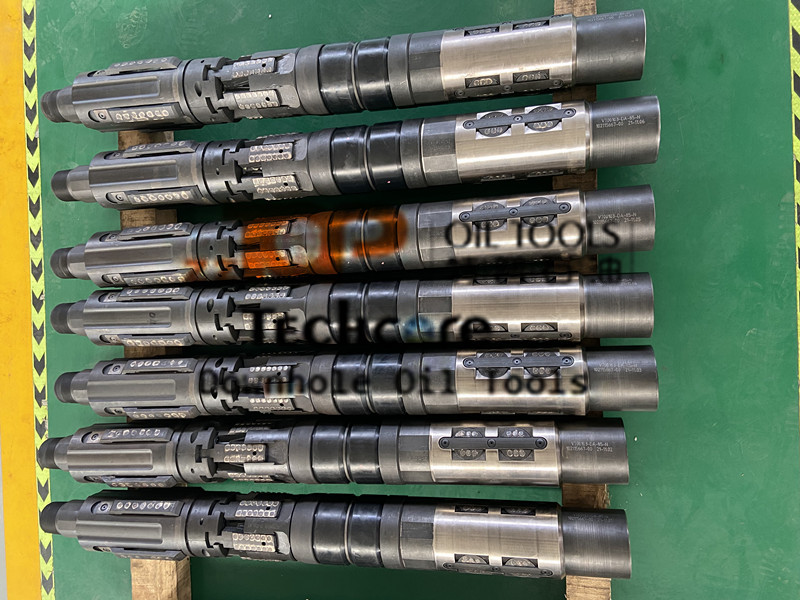

The Mechanical Setting Retrievable Packer is a full opening packer,which is used in drill stem testing service,squeezing operation, well completion operation and TCP operation. The retrievable packer is composed of a Auto J slot mechanism,mechanical slips, Packing elements and hydraulic slips, also equipped with the drag-block.
Part list of Retrievable Packer
| Part Number | Description |

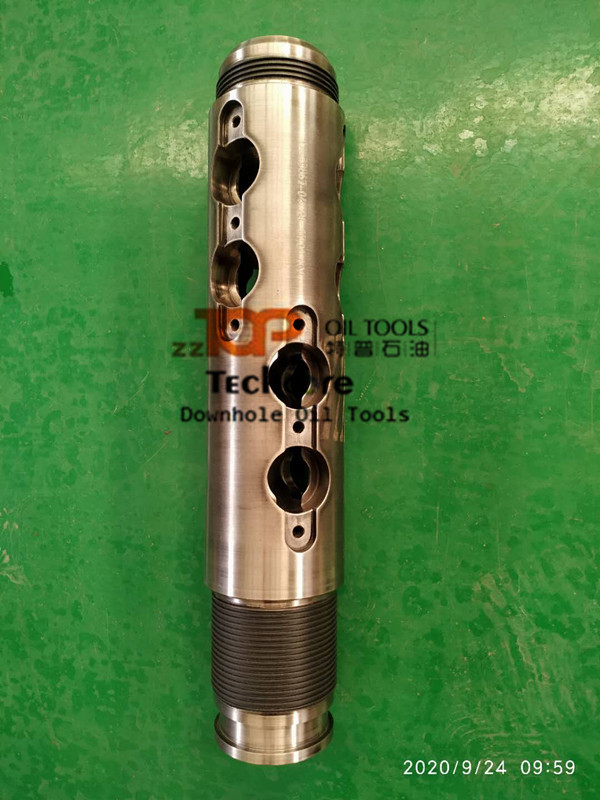

| 102115667-01 | Hydraulic Hold-Down Body |
| 102115667-02.00 | Hydraulic Slip |
| 102115667-02.01 | Hydraulic Slip body |
| 102115667-03 | Holding Strap |
| 102115667-04 | Spring |
| 102115667-05 | Volume Tube |
| 102115667-06b | Top Shoe |

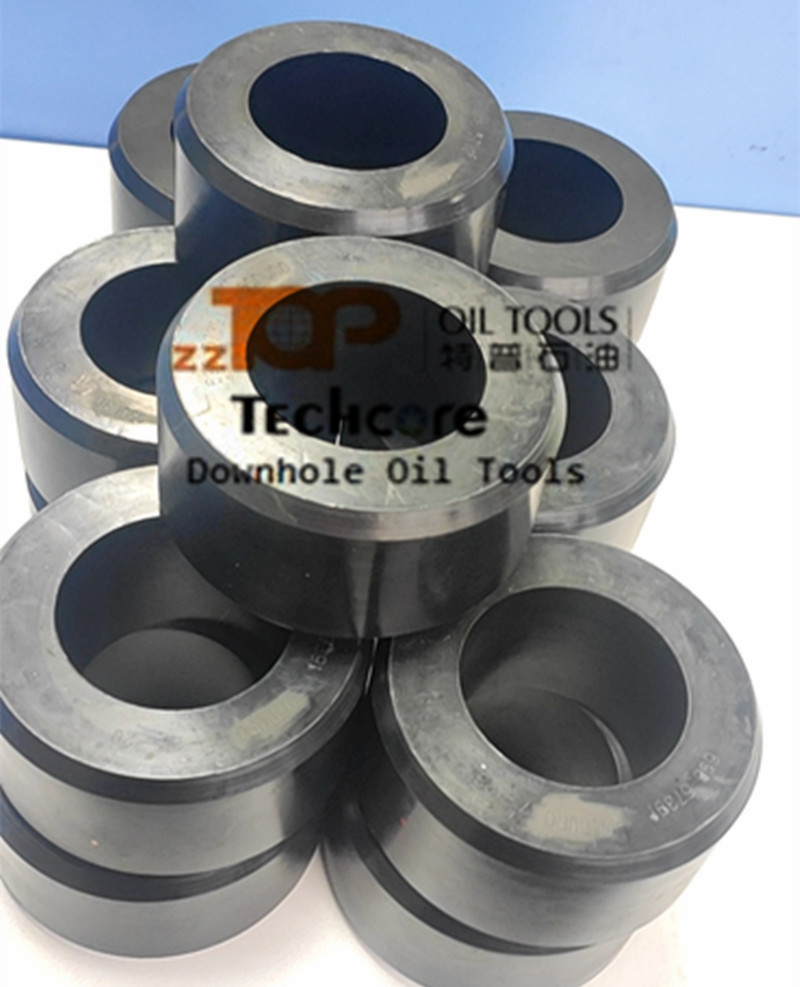

| 102115667-07b.03d | Packer Element Ring |
| 102115667-08 | Space Ring |
| 102115667-09b | Lower Shoe |
| 102115667-10 | Upper Mandrel |
| 102115667-11 | Mechanical Slip Body |

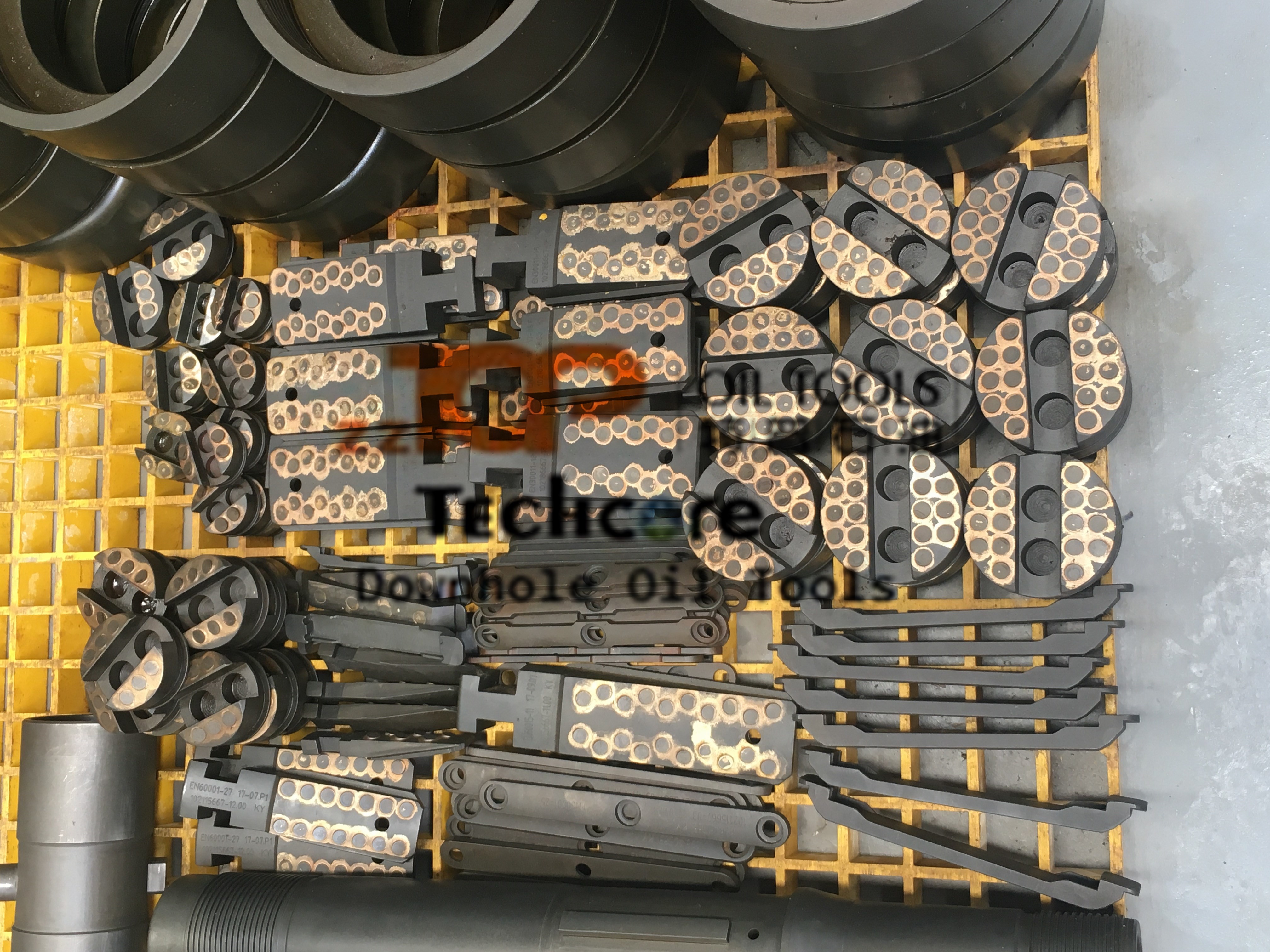

| 102115667-12.00 | Mechanical Slip w/ Carbide |
| 102115667-12.00 | Mechanical Slip w/ Carbide |
| 102115667-12.01 | Mechanical Slip body |
| 102115667-12.01 | Mechanical Slip body |
| 102115667-13 | Screw |
| 102115667-14 | Split Ring Collar |
| 102115667-15.00 | Dragblock |
| 102115667-16.00 | Dragblock Sleeve |
| 102115667-16.01 | Dragblock Sleeve case |
| 102115667-17 | Lower Mandrel |
| 2-334 | O Ring D90 VITON |
| 102146667-22 | Slip Screw |
| 2-330 | O Ring D90 VITON |
| 2-339 | O Ring D90 VITON |
| 102146667-12 | Slip stop pin |
| 2-231 | O Ring D90 VITON |
| 2-233 | O Ring D90 VITON |
| 102146667-19 | Dragblock Spring |
| 102146667-20 | Keeper |
| 2-338 | O Ring D90 VITON |
* The parts of retrievable packer are interchangeable with RTTS Packer in Halliburton Type
