Converional Perforating Guns Oil Well Perforation Annulus Pressure Firing

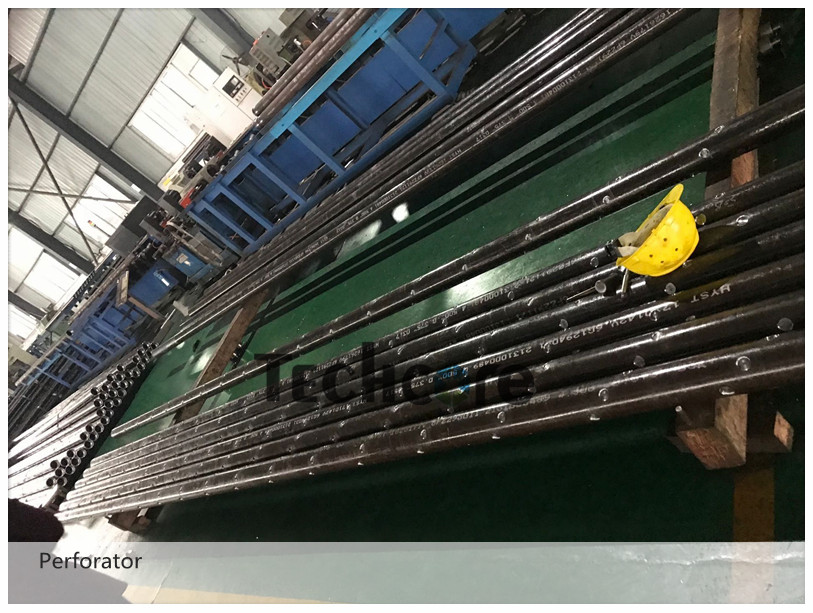

Overview of Converional Perforating Guns
The Conventional perforating guns is a sort of the perfoators used in oil & gas well perforation operation, it includes eight series. The conventional perforating gun body is with blind hole which is made by high strength alloy steel and its features are high strength, high toughness,no crack and less deformation after releasing.
Technical Parameter of Super Safety valve
| O.D. of Gun Body | 89mm 102mm 114mm 127mm |
| Perforating length | 1m 2m 3m 4m 5m 6m |
| Shot density, hole | 13/m 16/m 20/m 32/m 36/m 40/m |
| Phase angle | 60°,72°,90°,120°,45°/135°,30°/150° |
| Max. pressure resistance MPa | 105MPa 140MPa 175MPa |
| Max. temperature | 150℃ 180℃ 210℃ |
| Bullet arrangement | Right-handed rotation |
| Conveying method | Tubing conveyed & cable conveyed |
| Firing method | Detonating bar & annulus pressure firing |
About Techcore Oil Tools
With the professional Research and Development (R&D) department and skilled engineers whom were committed to the design of downhole tools for more than ten years, Techcore Oil Tools equipped with advance equipment is specialized in manufacture the oil downhole tools and its related parts in high quality.
In order to meet different requirement of downhole operation, in recent years, we joint with the perforating gun factory, who have accumulated abundant experiences in design and development the oil well perforation system, to manufacture and supply the oil well perforation gun system and shaped charge.
